Fork thickness gauges for contact measurements
Contact thickness gauges with a high insertion depth suitable for measuring the thickness of textile products, tapes, sheets or any sheet products.
The presence of a large arch allows measurement in places that are difficult to access with traditional measuring instruments.
The presence on some models of a pressure system determined by a weight allows to accurately determine the pressure force on the sample and to keep the weight / measurement surface ratio constant.
POCKET DIAL thickness gauges are used to measure the thickness of a wide range of materials such as leather, cardboard, paper, felt, rubber, glass, sheet metal, metal, film, glass, plywood and plastic. The shape of the contact points must be chosen based on the material to be measured. Flat, convex or spherical contact surfaces are available. The POCKET DIAL instruments are easy to use even with just one hand and are particularly compact and light, made for daily use by production operators and quality control in the production line.
Do you want help in choosing the product?
Decimal analog fork thickness gauges for thickness measurement of sheet, plate or coupled materials. Ideal for manual inspection and batch acceptance of materials.
- Measuring the thickness of fabrics and felts
- Inspection and acceptance of materials
- Thickness measurements of slabs and boards
- Use in production line and metrological laboratory
- Measurements of coupled and multilayer materials
- High insertion depth versions
- Tools with opening or closing lever presser
Contact thickness gauges with a high insertion depth suitable for measuring the thickness of textile products, tapes, sheets or any sheet products.
The presence of a large arch allows measurement in places that are difficult to access with traditional measuring instruments.
The presence on some models of a pressure system determined by a weight allows to accurately determine the pressure force on the sample and to keep the weight / measurement surface ratio constant.
CATALOGUE

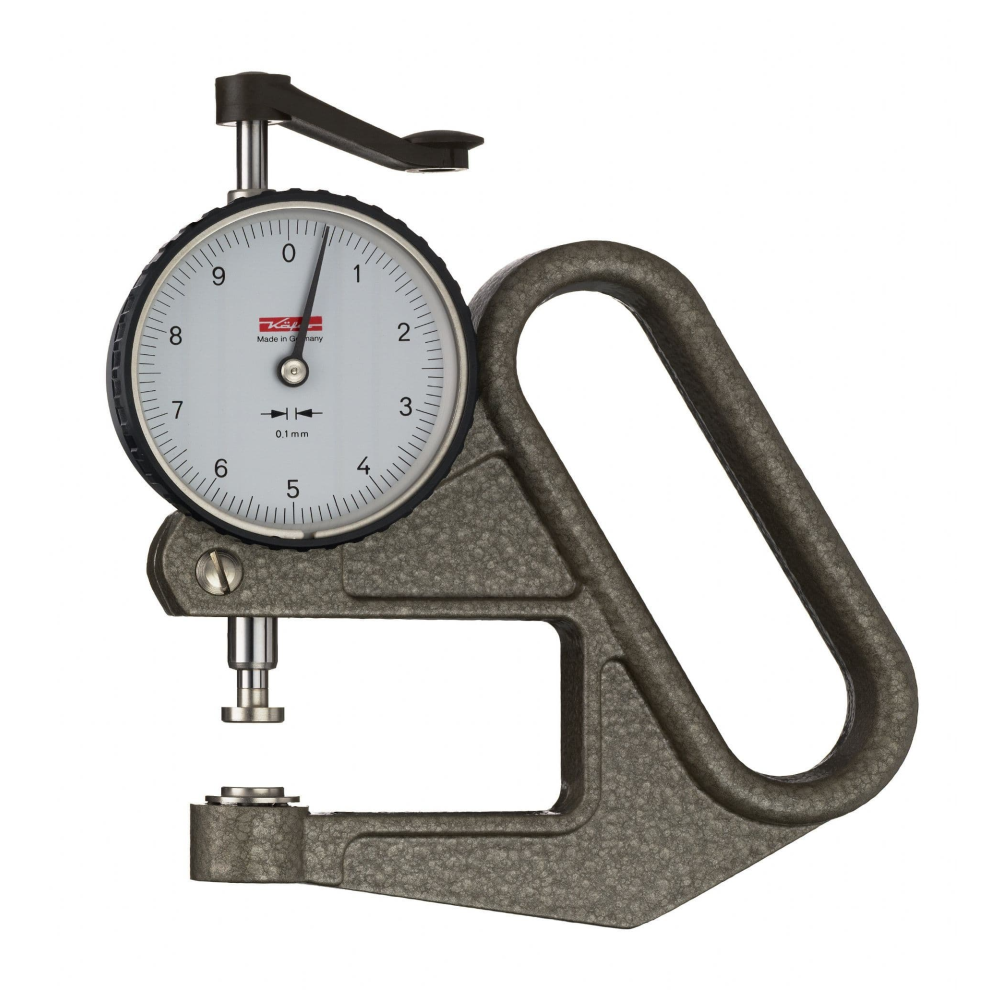

Fork feeler gauge model K50-LD
- Measuring range: 10 mm
- Analogue instrument with 0.1 mm resolution
- Max insertion depth: 50 mm
- Presser lift lever (normally closed)
- Spring preload approx. 0.4 N +/-20%
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (K50-LD-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (K50-LD-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (K50-LD-C)
Presser type D semi-sphere radius 15 mm: compact materials, wood, metals, rigid plastics (K50-LD-D)
E-type presser ball diameter 1/8″ (3.175 mm): metals, paper, plastic films, compact materials, ceramics (K50-LD-E)
Fork feeler gauge model K50/2
- Measuring range: 20 mm
- Analogue instrument with 0.1 mm resolution
- Max insertion depth: 50 mm
- Normally open pressure switch
- Upper lever to close the presser
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (K50/2-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (K50/2-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (K50/2-C)
Presser type D semi-sphere radius 15 mm: compact materials, wood, metals, rigid plastics (K50/2-D)
E-type presser ball diameter 1/8″ (3.175 mm): metals, paper, plastic films, compact materials, ceramics (K50/2-E)

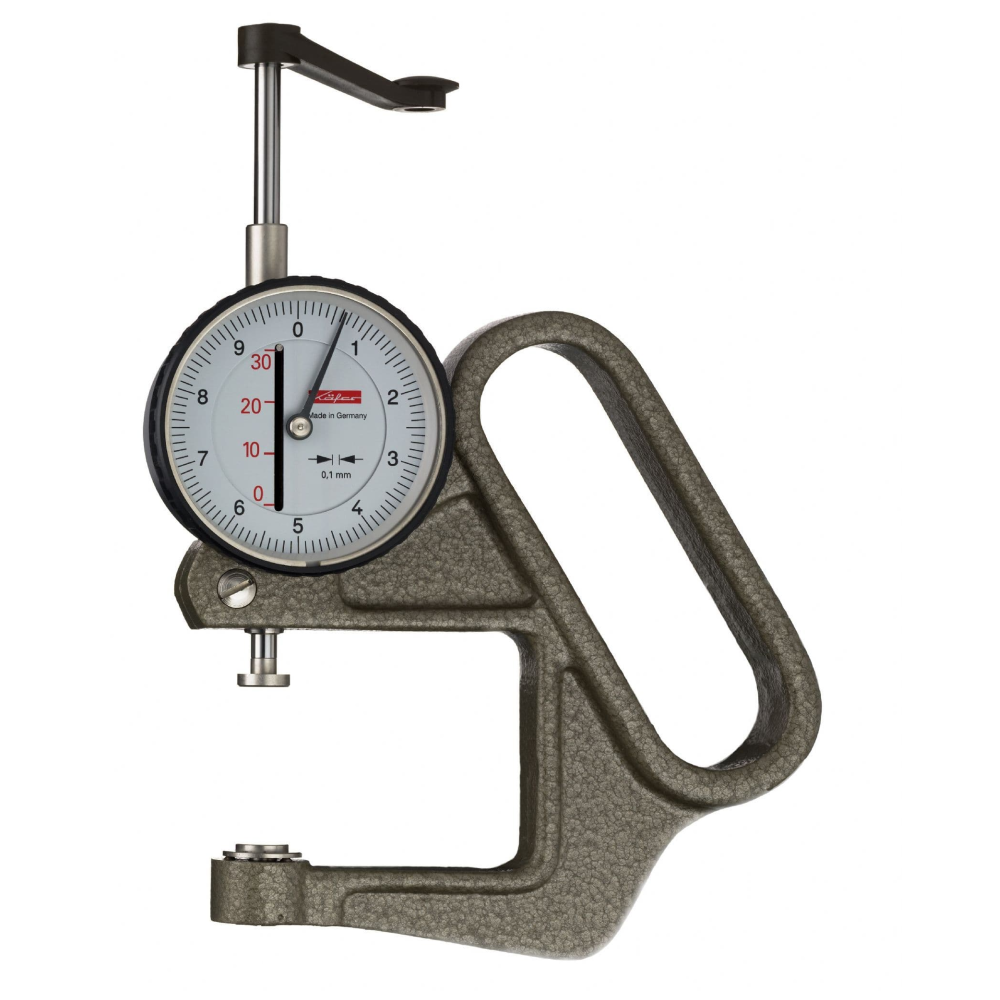

Fork feeler gauge model K50/3
- Measuring range: 30 mm
- Analogue instrument with 0.1 mm resolution
- Max insertion depth: 50 mm
- Normally open pressure switch
- Upper lever to close the presser
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (K50/3-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (K50/3-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (K50/3-C)
Presser type D semi-sphere radius 15 mm: compact materials, wood, metals, rigid plastics (K50/3-D)
E-type presser ball diameter 1/8″ (3.175 mm): metals, paper, plastic films, compact materials, ceramics (K50/3-E)

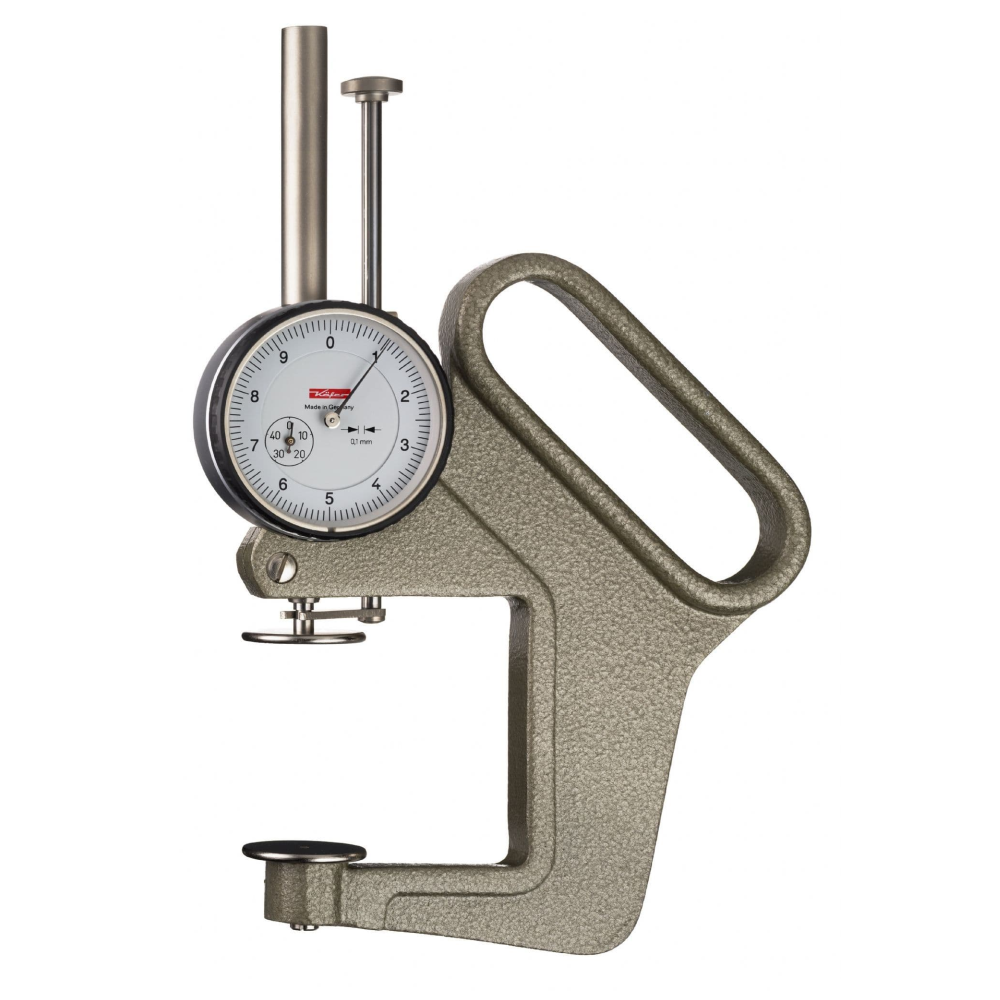

Fork feeler gauge model K50/5
- Measuring range: 50 mm
- Analogue instrument with 0.1 mm resolution
- Max insertion depth: 50 mm
- Normally open pressure switch
- Upper lever to close the presser
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (K50/5-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (K50/5-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (K50/5-C)
Presser type D semi-sphere radius 15 mm: compact materials, wood, metals, rigid plastics (K50/5-D)
E-type presser ball diameter 1/8″ (3.175 mm): metals, paper, plastic films, compact materials, ceramics (K50/5-E)

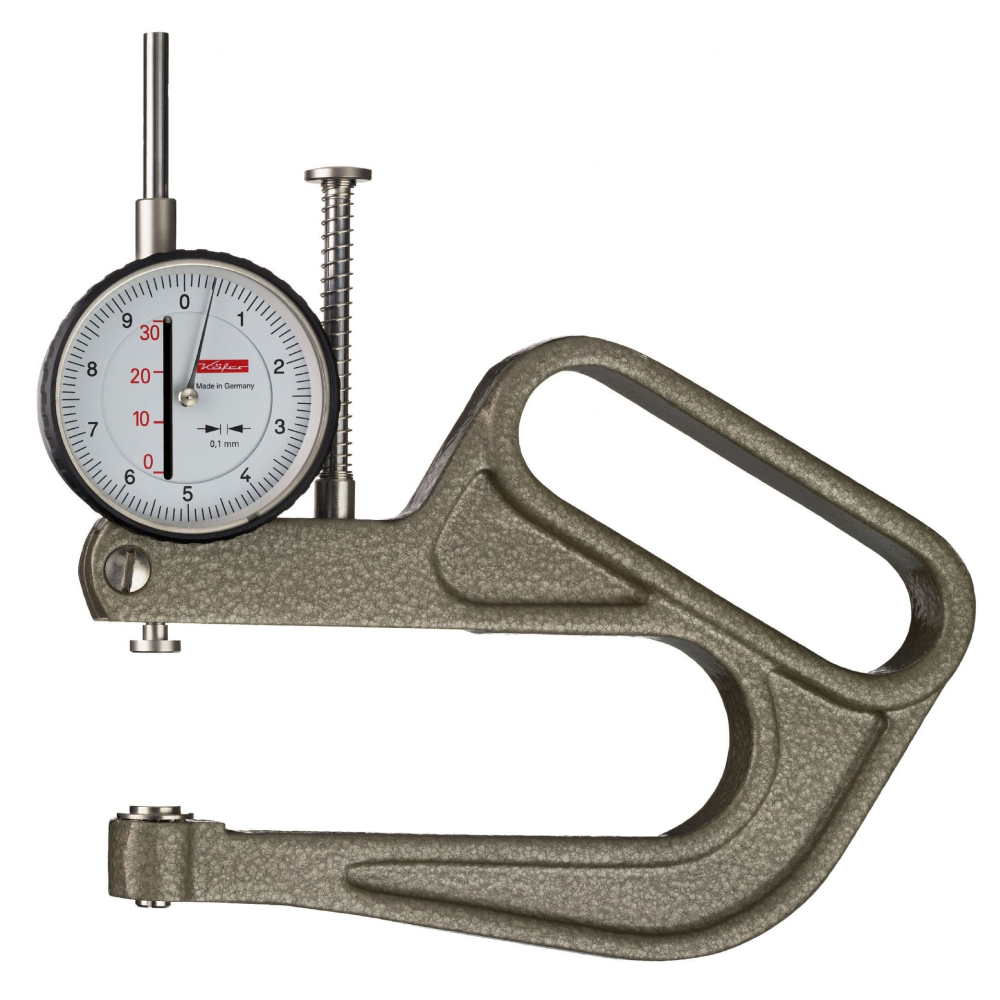

Fork feeler gauge model K100
- Measuring range: 30 mm
- Analogue instrument with 0.1 mm resolution
- Max insertion depth: 100 mm
- Normally open pressure switch
- Upper lever to close the presser
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (K100-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (K100-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (K100-C)
Presser type D semi-sphere radius 15 mm: compact materials, wood, metals, rigid plastics (K100-D)
E type presser ball diameter 1/8″ ( 3.175 mm ): metals, paper, plastic films, compact materials, ceramics ( K100-E )

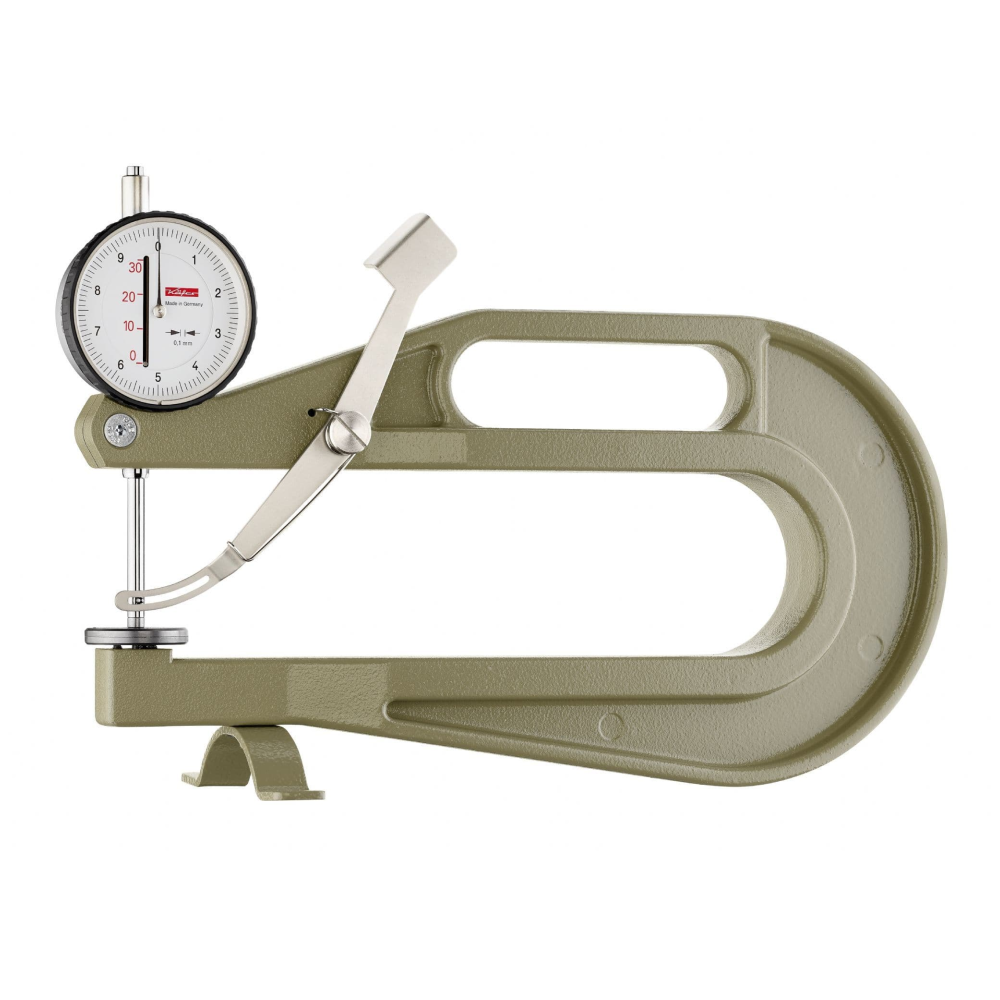

Fork feeler gauge model K200
- Measuring range: 30 mm
- Analogue instrument with 0.1 mm resolution
- Max insertion depth: 200 mm
- Normally closed pressure switch
- Upper lever to raise the presser
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (K200-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (K200-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (K200-C)
Presser type D semi-sphere radius 15 mm: compact materials, wood, metals, rigid plastics (K200-D)
E type presser ball diameter 1/8″ ( 3.175 mm ): metals, paper, plastic films, compact materials, ceramics ( K200-E )

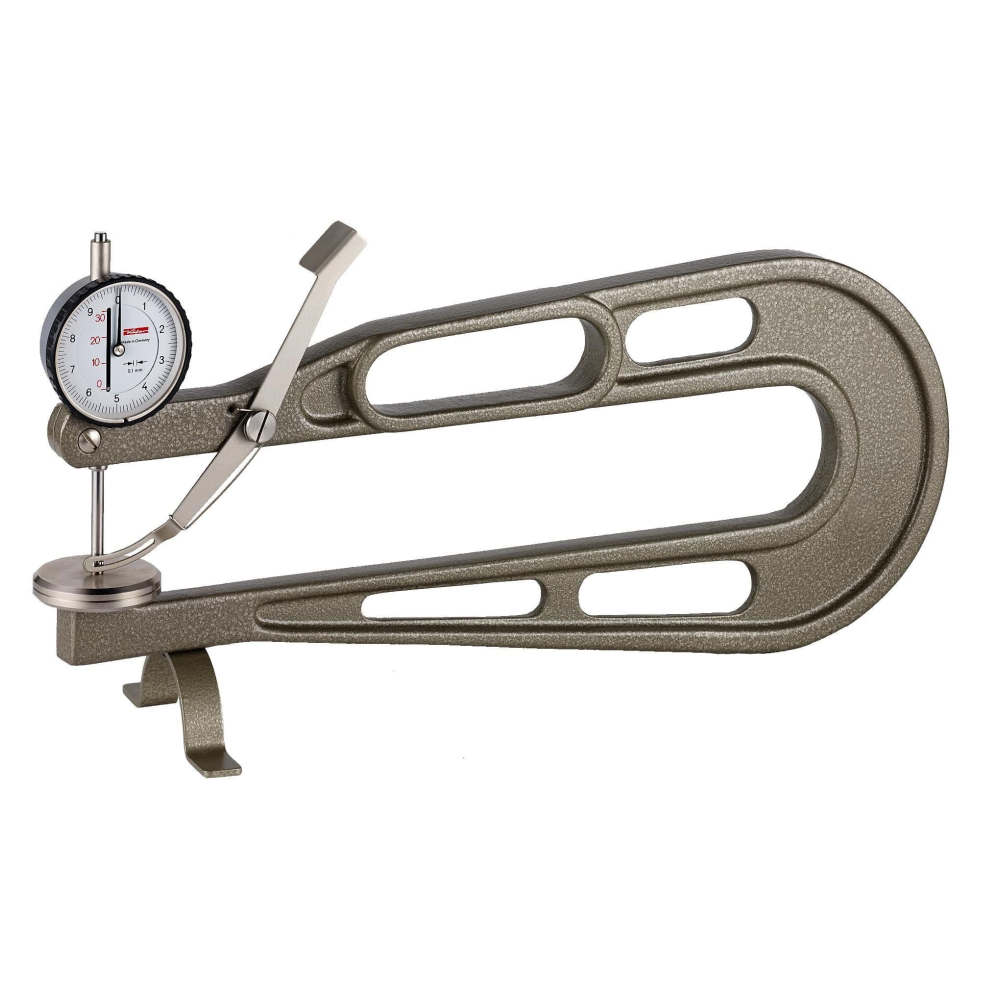

Fork feeler gauge model K300
- Measuring range: 30 mm
- Analogue instrument with 0.1 mm resolution
- Max insertion depth: 300 mm
- Normally closed pressure switch
- Upper lever to open the presser
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (K300-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (K300-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (K300-C)
Presser type D semi-sphere radius 15 mm: compact materials, wood, metals, rigid plastics (K300-D)
E type presser ball diameter 1/8″ ( 3.175 mm ): metals, paper, plastic films, compact materials, ceramics ( K300-E )

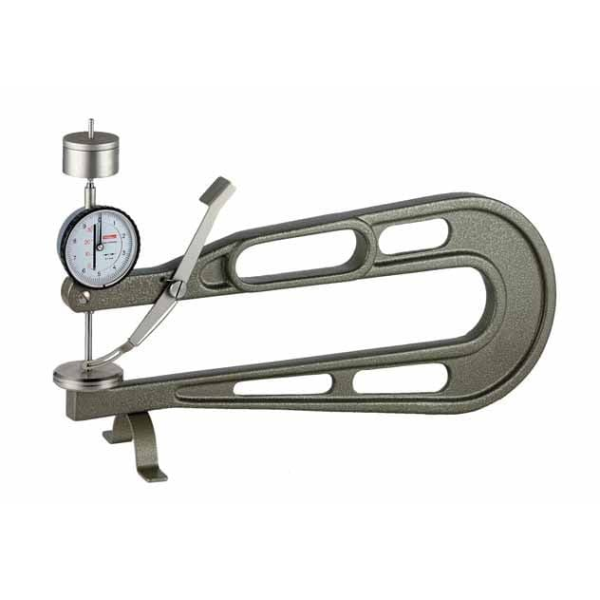

Fork feeler gauge model K400
- Measuring range: 30 mm
- Analogue instrument with 0.1 mm resolution
- Max insertion depth: 400 mm
- Normally closed pressure switch
- Upper lever to open the presser
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (K400-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (K400-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (K400-C)
Presser type D semi-sphere radius 15 mm: compact materials, wood, metals, rigid plastics (K400-D)
E type presser ball diameter 1/8″ ( 3.175 mm ): metals, paper, plastic films, compact materials, ceramics ( K400-E )

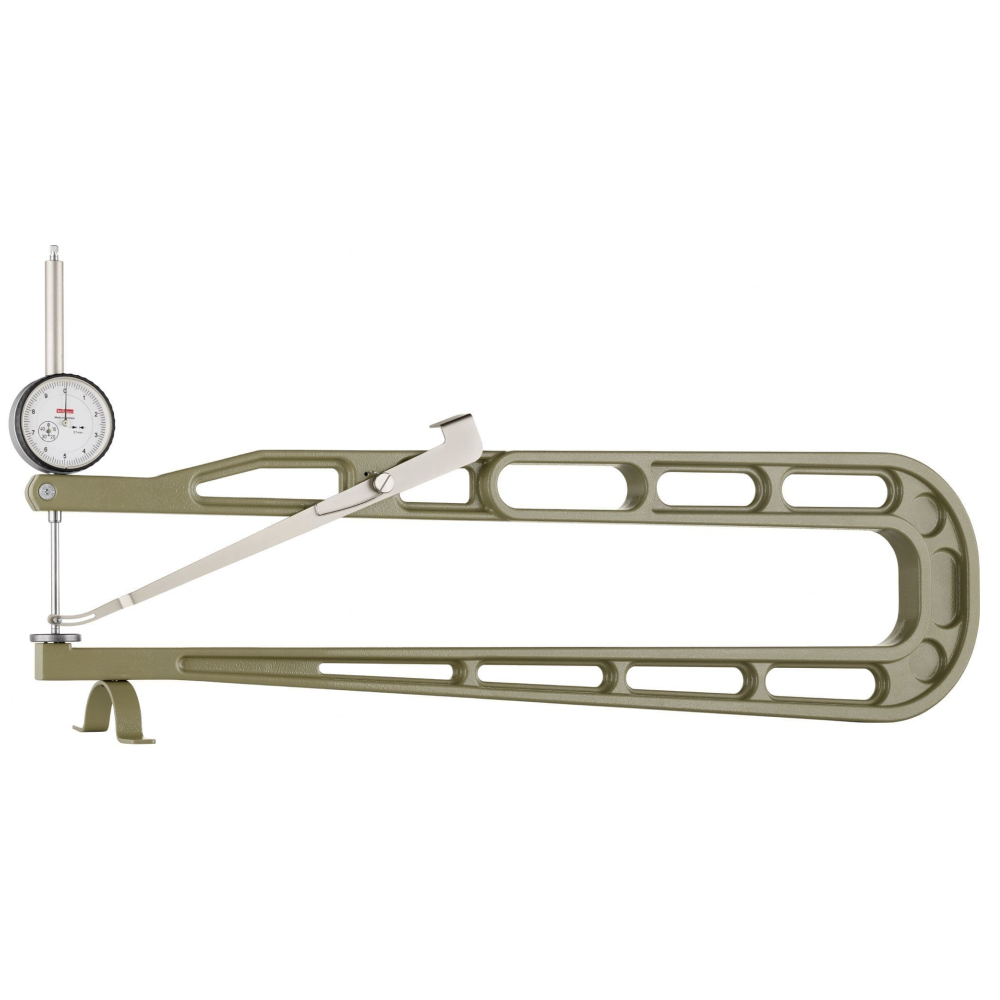

Fork feeler gauge model K600/50
- Measuring range: 50 mm
- Analogue instrument with 0.1 mm resolution
- Max insertion depth: 600 mm
- Normally closed pressure switch
- Upper lever to open the presser
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (K600-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (K600-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (K600-C)
Presser type D semi-sphere radius 15 mm: compact materials, wood, metals, rigid plastics (K600-D)
E type presser ball diameter 1/8″ ( 3.175 mm ): metals, paper, plastic films, compact materials, ceramics ( K600-E )
Technical insights
Fork thickness gauges are precision instruments designed to accurately measure the thickness of various materials. These instruments feature a robust and precise construction, ensuring reliable measurements in various industrial and laboratory applications.
Key Features:
- Accurate reading: Thickness gauges offer a reading resolution of up to 0,001 mm, allowing for extremely detailed measurements.
- Optimal running: With a 1mm travel, these tools are ideal for a wide range of thickness measurements.
- Easy-to-read dial: The dial has a large diameter, making it easy to read the measured values.
- Standardized accuracy: The accuracy of the thickness gauges complies with international standards, ensuring consistent and reliable results.
- High quality construction: Thanks to an accurate construction, these tools guarantee a long life and a high resistance to wear.
- Constant load: The design of the feeler gauges ensures a constant load during measurement, minimizing variations and increasing the repeatability of results.
- Versatility of use: Suitable for measuring the thickness of a variety of materials, thickness gauges are essential tools in many industries, including manufacturing, metalworking, and materials processing.
Analogue fork thickness gauges, centesimal, for thickness measurements of sheet, plate or coupled materials. Ideal for manual inspections and batch acceptance of materials.
- Measuring the thickness of fabrics and felts
- Inspection and acceptance of materials
- Thickness measurements of slabs and boards
- Use in production line and metrological laboratory
- Measurements of coupled and multilayer materials
- High insertion depth versions
- Tools with opening or closing lever presser
Contact thickness gauges with a high insertion depth suitable for measuring the thickness of textile products, tapes, sheets or any sheet products.
The presence of a large arch allows measurement in places that are difficult to access with traditional measuring instruments.
The presence on some models of a pressure system determined by a weight allows to accurately determine the pressure force on the sample and to keep the weight / measurement surface ratio constant.
Fork feeler gauge model J50-LD
- Measuring range: 10 mm
- Analogue instrument with 0.01 mm resolution
- Max insertion depth: 50 mm
- Presser lift lever (normally closed)
- Spring preload approx. 1.2 N +/-20%
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (J50-LD-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (J50-LD-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (J50-LD-C)
D-type presser, hemisphere, radius 15 mm: compact materials, wood, metals, rigid plastics (J50-LD-D)
E-type presser ball diameter 1/8″ (3.175 mm): metals, paper, plastic films, compact materials, ceramics (J50-LD-E)

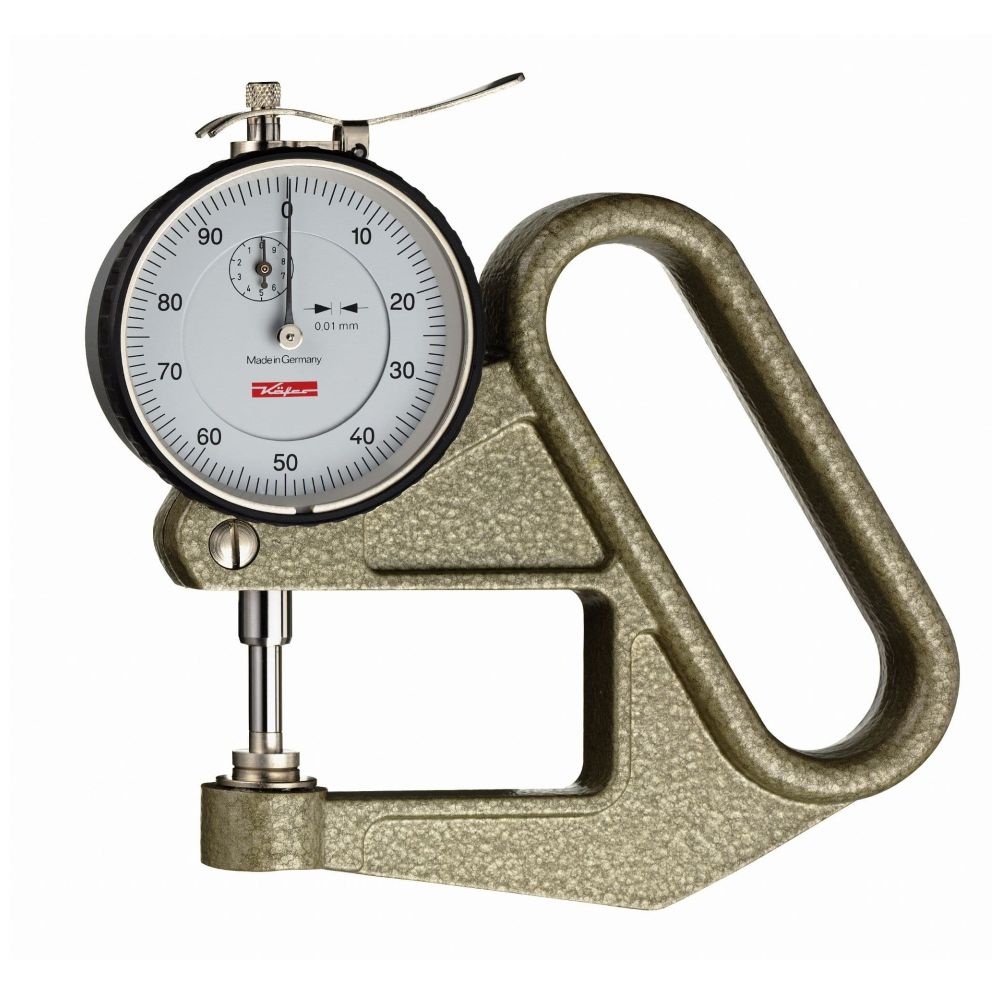

J50 Fork Feeler Gauge
- Measuring range: 10 mm
- Analogue instrument with 0.01 mm resolution
- Max insertion depth: 50 mm
- Normally open pressure switch
- Upper lever to close the presser
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (J50-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (J50-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (J50-C)
Presser type D semi-sphere radius 15 mm: compact materials, wood, metals, rigid plastics (J50-D)
E-type presser ball diameter 1/8″ (3.175 mm): metals, paper, plastic films, compact materials, ceramics (J50-E)
Fork feeler gauge model J50/30
- Measuring range: 30 mm
- Analogue instrument with 0.01 mm resolution
- Max insertion depth: 50 mm
- Normally open pressure switch
- Upper lever to close the presser
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (J50/30-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (J50/30-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (J50/30-C)
D-type presser, hemisphere, radius 15 mm: compact materials, wood, metals, rigid plastics (J50/30-D)
E-type presser ball diameter 1/8″ (3.175 mm): metals, paper, plastic films, compact materials, ceramics (J50/30-E)
Fork feeler gauge model J50/30-LD
- Measuring range: 30 mm
- Analogue instrument with 0.01 mm resolution
- Max insertion depth: 50 mm
- Normally open pressure switch
- Upper lever to close the presser
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (J50/30-LD-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (J50/30-LD-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (J50/30-LD-C)
D-type presser, hemisphere, radius 15 mm: compact materials, wood, metals, rigid plastics (J50/30-LD-D)
E-type presser ball diameter 1/8″ (3.175 mm): metals, paper, plastic films, compact materials, ceramics (J50/30-LD-E)
J100 Fork Feeler Gauge
- Measuring range: 10 mm
- Analogue instrument with 0.01 mm resolution
- Max insertion depth: 100 mm
- Normally open pressure switch
- Upper lever to close the presser
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (J100-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (J100-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (J100-C)
Presser type D semi-sphere radius 15 mm: compact materials, wood, metals, rigid plastics (J100-D)
E-type presser ball diameter 1/8″ (3.175 mm): metals, paper, plastic films, compact materials, ceramics (J100-E)

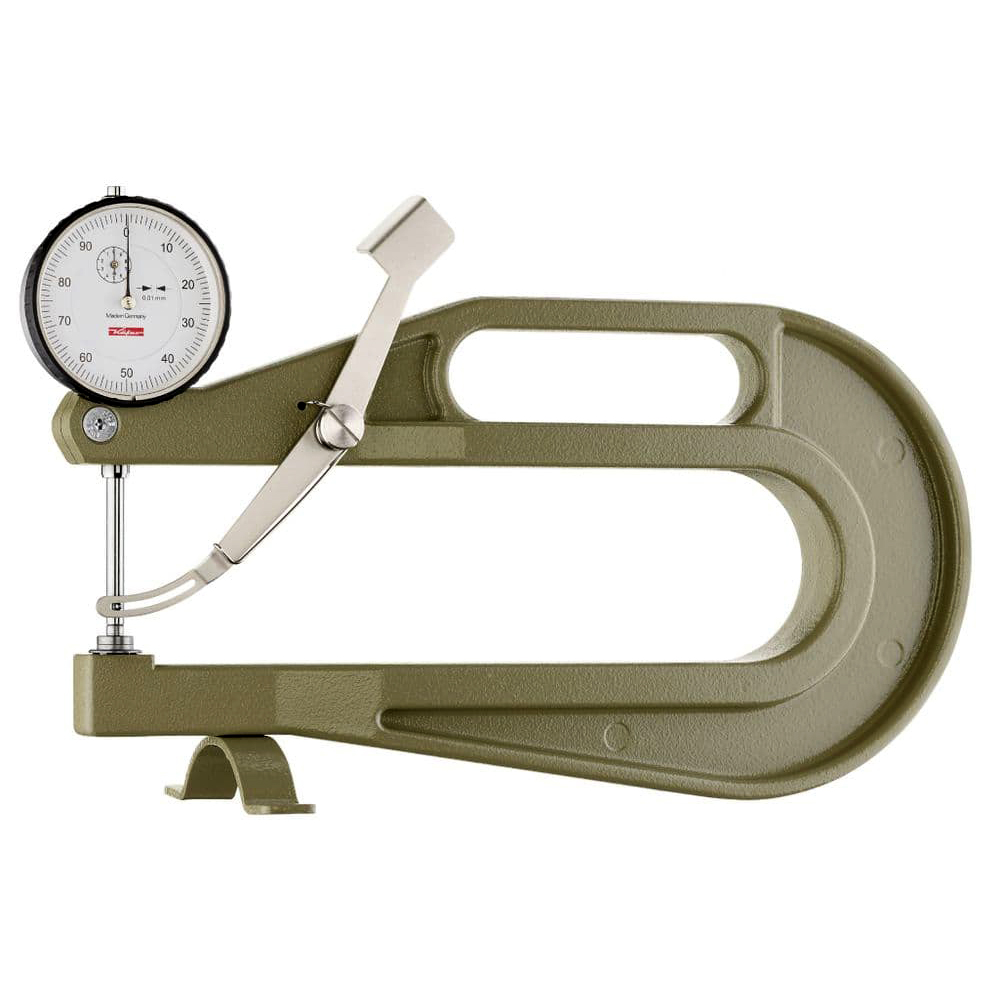

J200 Fork Feeler Gauge
- Measuring range: 10 mm
- Analogue instrument with 0.01 mm resolution
- Max insertion depth: 200 mm
- Normally closed pressure switch
- Upper lever to raise the presser
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (J200-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (J200-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (J200-C)
Presser type D semi-sphere radius 15 mm: compact materials, wood, metals, rigid plastics (J200-D)
E-type presser ball diameter 1/8″ (3.175 mm): metals, paper, plastic films, compact materials, ceramics (J200-E)

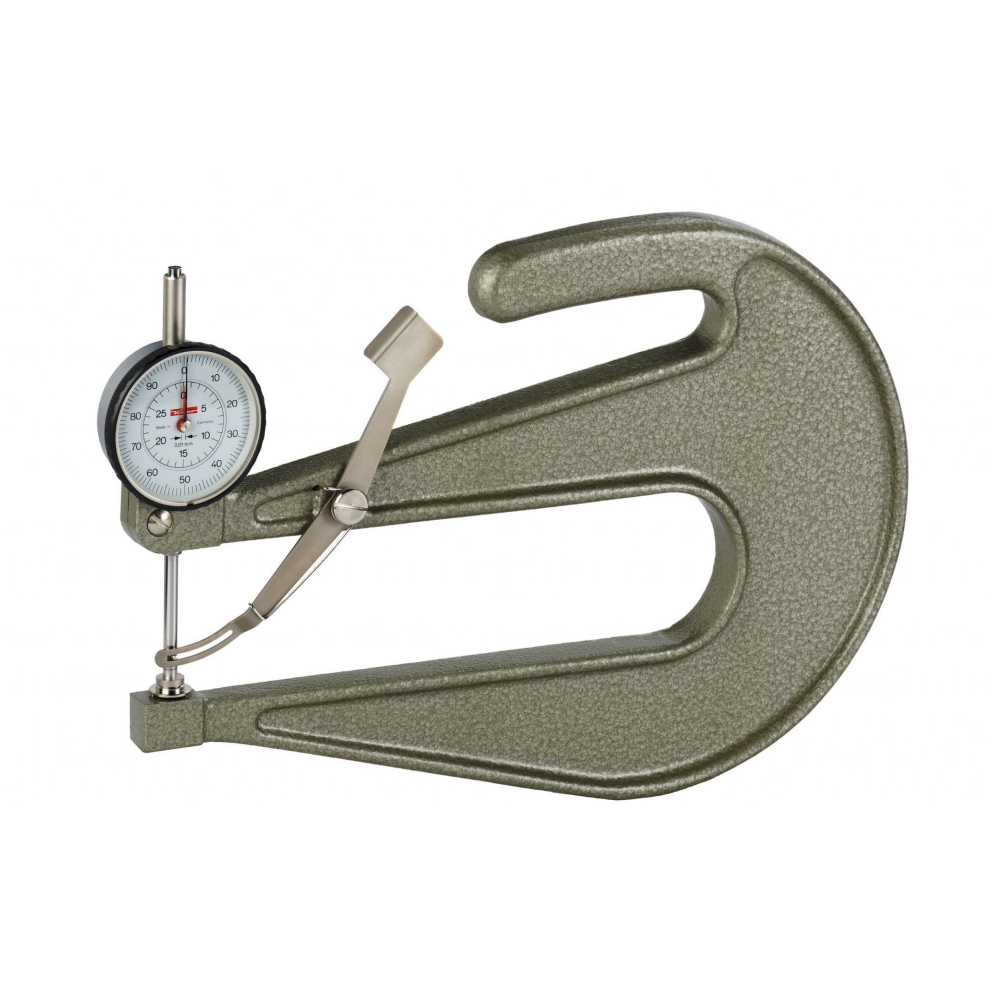

Fork feeler gauge model J200/30
- Measuring range: 30 mm
- Analogue instrument with 0.01 mm resolution
- Max insertion depth: 200 mm
- Normally closed pressure switch
- Upper lever to open the presser
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (J200/30-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (J200/30-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (J200/30-C)
D-type presser, hemisphere, radius 15 mm: compact materials, wood, metals, rigid plastics (J200/30-D)
E-type presser ball diameter 1/8″ (3.175 mm): metals, paper, plastic films, compact materials, ceramics (J200/30-E)
Analogue fork thickness gauges, centesimal, for thickness measurements of sheet, plate or coupled materials. Ideal for manual inspections and batch acceptance of materials.
- Measuring the thickness of sheet metal
- Inspection and acceptance of materials
- Film thickness measurements
- Use in production line and metrological laboratory
- Measurements of coupled and multilayer materials
- High insertion depth versions
- Tools with opening or closing lever presser
Contact thickness gauges with a high insertion depth suitable for measuring the thickness of textile products, tapes, sheets or any sheet products.
The presence of a large arch allows measurement in places that are difficult to access with traditional measuring instruments.
The presence on some models of a pressure system determined by a weight allows to accurately determine the pressure force on the sample and to keep the weight / measurement surface ratio constant.

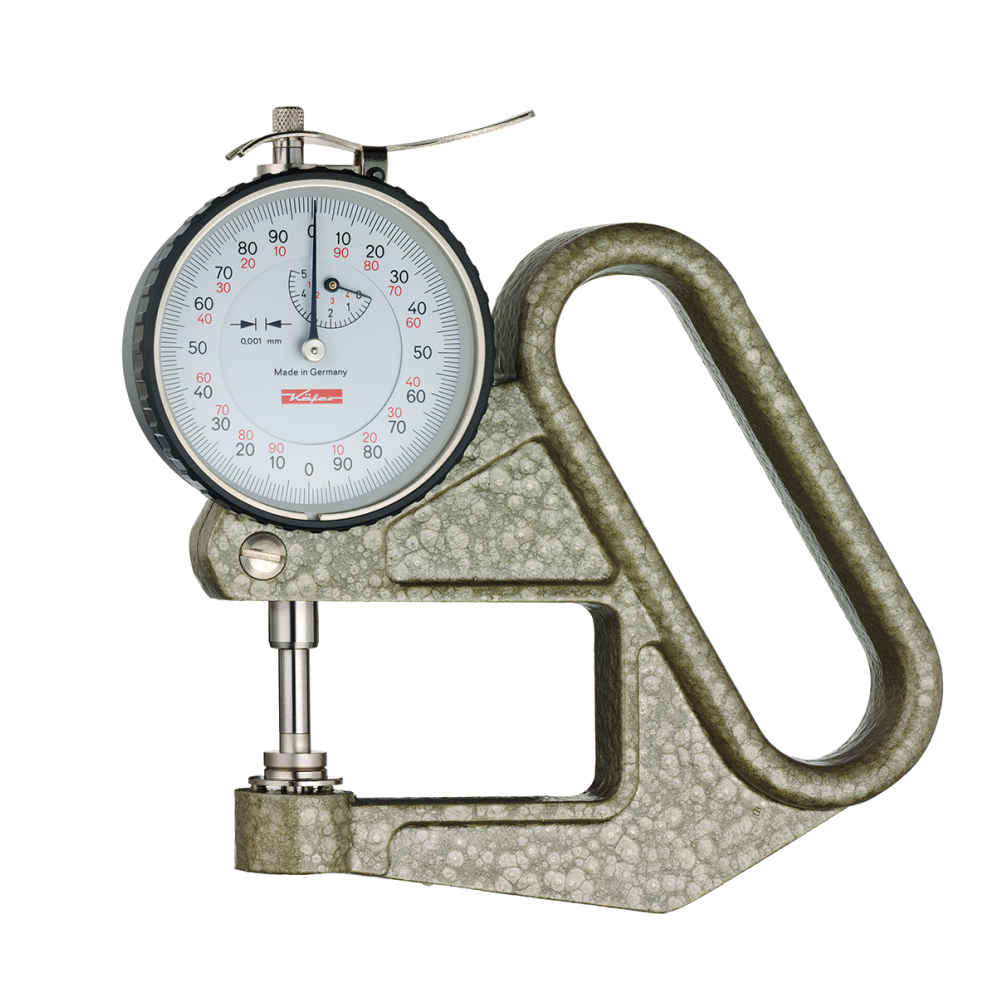

Fork feeler gauge model F50
- Measuring range: 5 mm
- Analogue instrument with 0.001 mm resolution
- Max insertion depth: 50 mm
- Presser lift lever (normally closed)
- Spring preload approx. 1.7 N +/-20%
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (F50-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (F50-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (F50-C)
Presser type D semi-sphere radius 15 mm: compact materials, wood, metals, rigid plastics (F50-D)
E type presser ball diameter 1/8″ (3.175 mm): metals, paper, plastic films, compact materials, ceramics (F50-E)

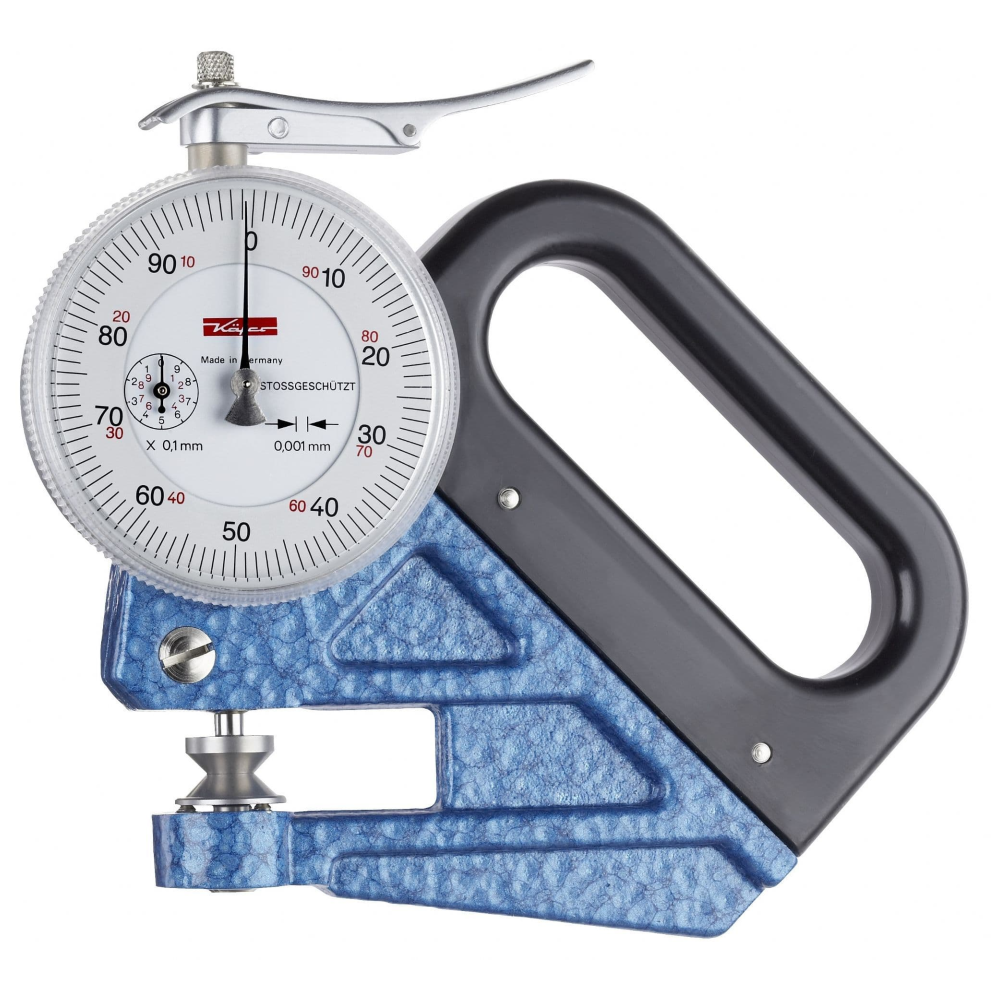

Fork feeler gauge model F1101/30
- Measuring range: 1 mm
- Analogue instrument with 0.001 mm resolution
- Max insertion depth: 30 mm
- Normally closed pressure switch
- Upper lever to raise the presser
Fork feeler gauge model F1101/30-0.1
- Measuring range: 0.1 mm
- Analogue instrument with 0.001 mm resolution
- Max insertion depth: 30 mm
- Normally closed pressure switch
- Upper lever to raise the presser
Digital fork thickness gauges centesimal for thickness measurement of materials in sheets, plates or coupled materials. Ideal for manual inspections and batch acceptance of materials.
- Measuring the thickness of fabrics and felts
- Inspection and acceptance of materials
- Thickness measurements of slabs and boards
- Use in production line and metrological laboratory
- Measurements of coupled and multilayer materials
- High insertion depth versions
- Tools with opening or closing lever presser
Contact thickness gauges with a high insertion depth suitable for measuring the thickness of textile products, tapes, sheets or any sheet products.
The presence of a large arch allows measurement in places that are difficult to access with traditional measuring instruments.
The presence on some models of a pressure system determined by a weight allows to accurately determine the pressure force on the sample and to keep the weight / measurement surface ratio constant.
Fork feeler gauge model JD50-LD
- Measuring range: 12.5 mm
- Analogue instrument with 0.01 mm resolution
- Max insertion depth: 50 mm
- Presser lift lever (normally closed)
- Spring preload approx. 0.7 N +/-20%
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (JD50-LD-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (JD50-LD-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (JD50-LD-C)
D-type presser, hemisphere, radius 15 mm: compact materials, wood, metals, rigid plastics (JD50-LD-D)
E-type presser ball diameter 1/8″ (3.175 mm): metals, paper, plastic films, compact materials, ceramics (JD50-LD-E)

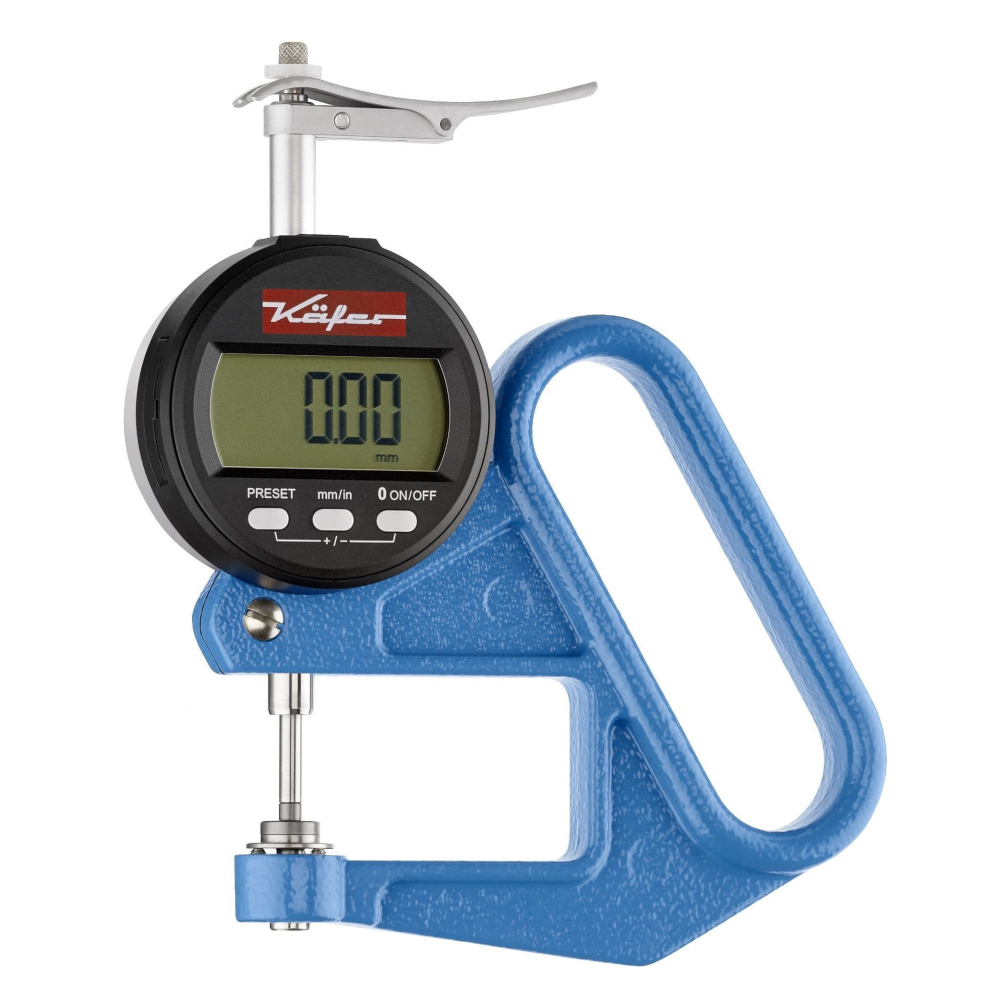

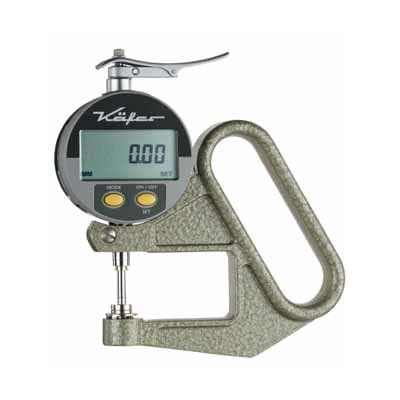

Fork feeler gauge model JD100-LD
- Measuring range: 12.5 mm
- Analogue instrument with 0.01 mm resolution
- Max insertion depth: 100 mm
- Normally open pressure switch
- Upper lever to close the presser
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (JD100-LD-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (JD100-LD-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (JD100-LD-C)
D-type presser, hemisphere, radius 15 mm: compact materials, wood, metals, rigid plastics (JD100-LD-D)
E-type presser ball diameter 1/8″ (3.175 mm): metals, paper, plastic films, compact materials, ceramics (JD100-LD-E)

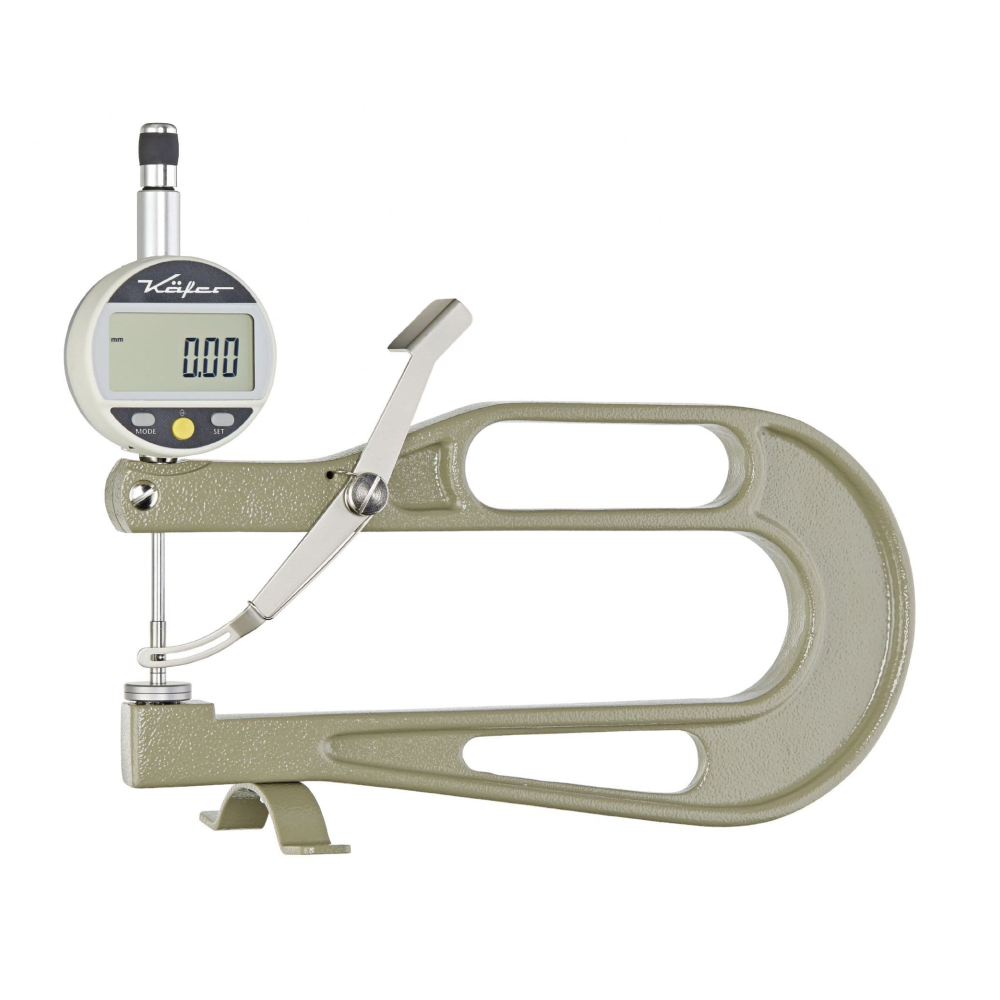

Fork feeler gauge model JD200-LD
- Measuring range: 25 mm
- Analogue instrument with 0.01 mm resolution
- Max insertion depth: 200 mm
- Normally open pressure switch
- Upper lever to close the presser
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (JD200-LD-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (JD200-LD-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (JD200-LD-C)
D-type presser, hemisphere, radius 15 mm: compact materials, wood, metals, rigid plastics (JD200-LD-D)
E-type presser ball diameter 1/8″ (3.175 mm): metals, paper, plastic films, compact materials, ceramics (JD200-LD-E)
Fork feeler gauge model JD200-LD
- Measuring range: 25 mm
- Analogue instrument with 0.01 mm resolution
- Max insertion depth: 200 mm
- Normally open pressure switch
- Upper lever to close the presser
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (JD200-LD-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (JD200-LD-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (JD200-LD-C)
D-type presser, hemisphere, radius 15 mm: compact materials, wood, metals, rigid plastics (JD200-LD-D)
E-type presser ball diameter 1/8″ (3.175 mm): metals, paper, plastic films, compact materials, ceramics (JD200-LD-E)
Digital fork thickness gauges, 1000 mm, for thickness measurements of sheet, plate or coupled materials. Ideal for manual inspections and batch acceptance of materials.
- Measuring the thickness of fabrics and felts
- Inspection and acceptance of materials
- Thickness measurements of slabs and boards
- Use in production line and metrological laboratory
- Measurements of coupled and multilayer materials
- High insertion depth versions
- Tools with opening or closing lever presser
Contact thickness gauges with a high insertion depth suitable for measuring the thickness of textile products, tapes, sheets or any sheet products.
The presence of a large arch allows measurement in places that are difficult to access with traditional measuring instruments.
The presence on some models of a pressure system determined by a weight allows to accurately determine the pressure force on the sample and to keep the weight / measurement surface ratio constant.

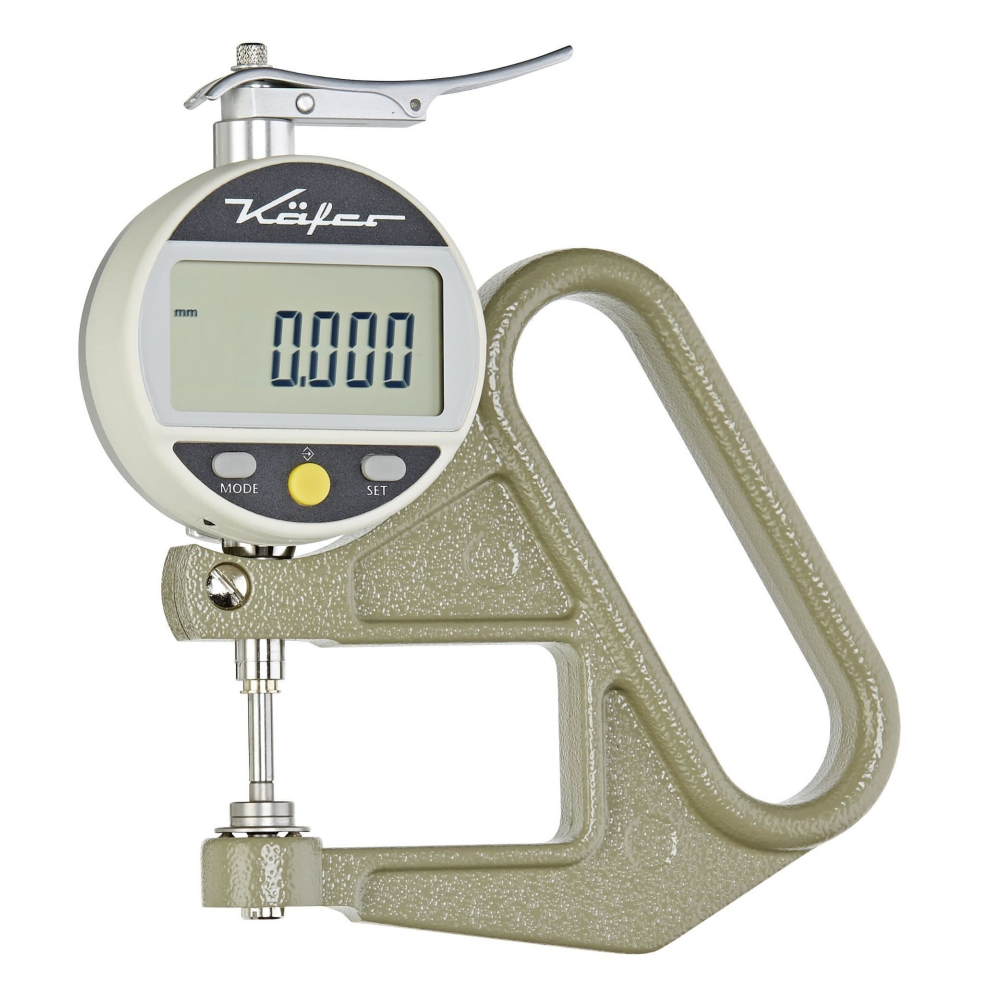

Fork feeler gauge model FD50-LD
- Measuring range: 12.5 mm
- Analogue instrument with 0.001 mm resolution
- Max insertion depth: 50 mm
- Presser lift lever (normally closed)
- Spring preload approx. 0.7 N +/-20%
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (FD50-LD-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (FD50-LD-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (FD50-LD-C)
D-type presser, hemisphere, radius 15 mm: compact materials, wood, metals, rigid plastics (FD50-LD-D)
E-type presser ball diameter 1/8″ (3.175 mm): metals, paper, plastic films, compact materials, ceramics (FD50-LD-E)
Fork feeler gauge model FD100-LD
- Measuring range: 12.5 mm
- Analogue instrument with 0.01 mm resolution
- Max insertion depth: 200 mm
- Normally open pressure switch
- Upper lever to close the presser
Available with different types of pressure pads:
Presser type A plate diameter 30 mm: soft materials, rubber, felts, fabrics, expanded materials (FD200-LD-A)
Presser type A plate diameter 20 mm: soft materials, rubber, cardboard, various fabrics (FD200-LD-B)
C type press plate diameter 30 mm: compact, wood, cardboard, compact fabrics (FD200-LD-C)
D-type presser, hemisphere, radius 15 mm: compact materials, wood, metals, rigid plastics (FD200-LD-D)
E-type presser ball diameter 1/8″ (3.175 mm): metals, paper, plastic films, compact materials, ceramics (FD200-LD-E)
Contact thickness gauges with a high insertion depth suitable for measuring the thickness of textile products, tapes, sheets or any sheet products.
The presence of a large arch allows measurement in places that are difficult to access with traditional measuring instruments.
The presence on some models of a pressure system determined by a weight allows to accurately determine the pressure force on the sample and to keep the weight / measurement surface ratio constant.
POCKET DIAL thickness gauges are used to measure the thickness of a wide range of materials such as leather, cardboard, paper, felt, rubber, glass, sheet metal, metal, film, glass, plywood and plastic. The shape of the contact points must be chosen based on the material to be measured. Flat, convex or spherical contact surfaces are available. The POCKET DIAL instruments are easy to use even with just one hand and are particularly compact and light, made for daily use by production operators and quality control in the production line.
Fork thickness gauges with special contact points. Ideal for manual inspection and batch acceptance of materials.
- Measurement of pipe wall thickness
- Inspection and acceptance of materials
- Thickness measurements of slabs and boards
- Use in production line and metrological laboratory
- Measurements of coupled and multilayer materials
- High insertion depth versions
- Tools with opening or closing lever presser
Contact thickness gauges with a high insertion depth suitable for measuring the thickness of textile products, tapes, sheets or any sheet products.
The presence of a large arch allows measurement in places that are difficult to access with traditional measuring instruments.
The presence on some models of a pressure system determined by a weight allows to accurately determine the pressure force on the sample and to keep the weight / measurement surface ratio constant.
Fork feeler gauge model JD50-LD
- Measuring range: 12.5 mm
- Analogue instrument with 0.01 mm resolution
- Max insertion depth: 50 mm
- Presser lift lever (normally closed)
- Spring preload approx. 0.7 N +/-20%
Available with different types of pressure pads:
Fork thickness gauges with special contact points. Ideal for manual inspection and batch acceptance of materials.
- Measurement of pipe wall thickness
- Inspection and acceptance of materials
- Thickness measurements of slabs and boards
- Use in production line and metrological laboratory
- Measurements of coupled and multilayer materials
- High insertion depth versions
- Tools with opening or closing lever presser
Contact thickness gauges with a high insertion depth suitable for measuring the thickness of textile products, tapes, sheets or any sheet products.
The presence of a large arch allows measurement in places that are difficult to access with traditional measuring instruments.
The presence on some models of a pressure system determined by a weight allows to accurately determine the pressure force on the sample and to keep the weight / measurement surface ratio constant.
Copyright by RODER SRL – Oglianico (TO) – Italy
For more information : info@roder.it
Computer Vision Division: www.rodervision.com
Measuring instruments division: www.innovacheck.com
Visit the page LinkedIn
The information on this website is provided for information purposes only. Although it has been prepared with the utmost care, it does not constitute a contractual offer or a binding commitment to supply. It may contain transcription, translation or typographical errors. For precise and up-to-date information, please contact our company directly.
